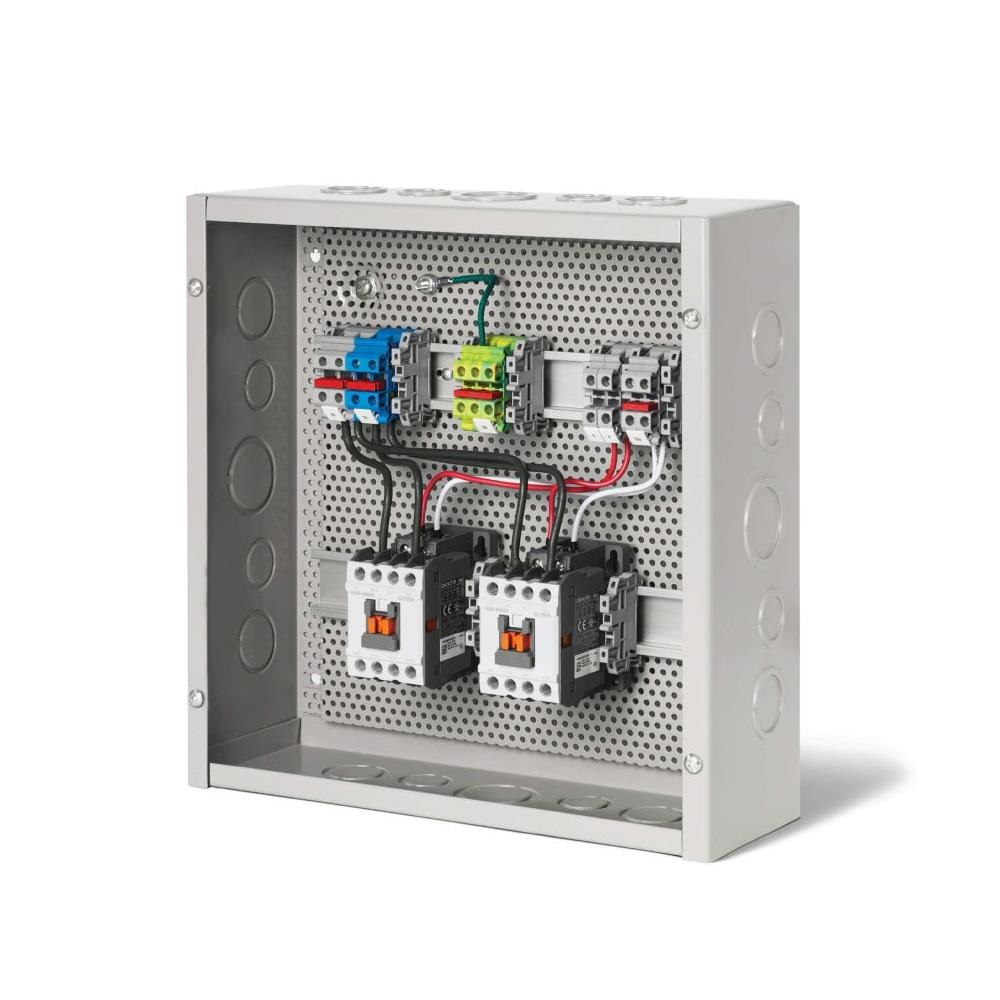

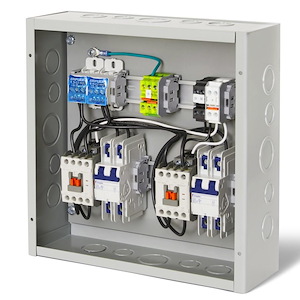

Infratech - 144710 - Dual Contactor Panel

What is it Used For?

Infratech’s Contactor Panel with Digital Timer enhances the Value Control options by adding the functionality of timer capabilities to simple on/off switches and duplex switches.

What is it Compatible With?

The contactor panel is designed for use with all Infratech heaters, single or dual element.

What are the Benefits?

• Peace of mind in integrating a timer without having to expand your budget on custom dimming panels and controls.
• Ability to mix and match heaters to be controlled by a single switch.
• Enables the integration of timers and other 120 VAC controls, including smart switches.

• Panel + Switch = Complete unit
• Contactor panel must be installed indoors in a dry well-ventilated space.
• Can be surface mounted on wall - comes with a front cover.

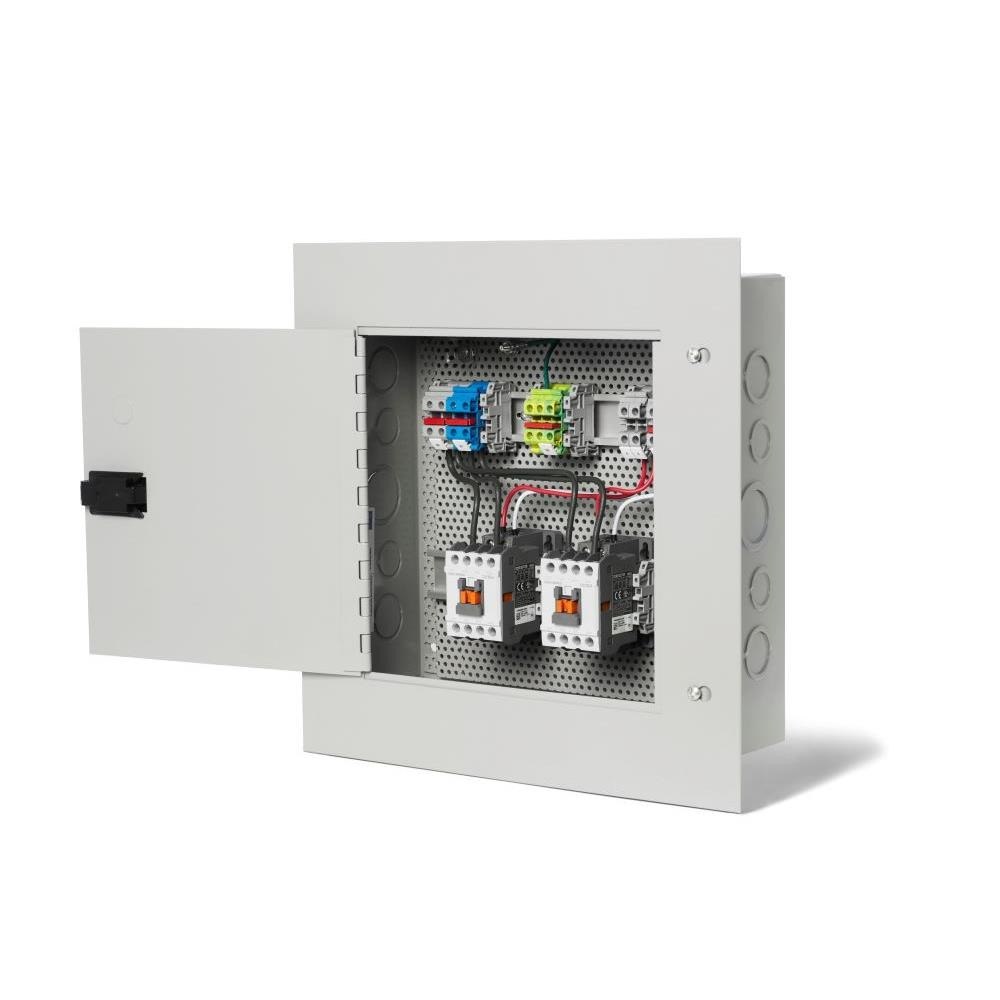

• Can be recessed into a wall - access door can be purchased separately.

• Each contactor in the panel can handle up to 6,000 watts max at 240VAC.
• Wattages do not need to match, but they cannot exceed 6,000 watts.
• EX: a 4,000 watt Single element Heater and a 2,000 watt single element heater can bothe be controlled at the same time and operate on a single contactor.

• EX: Four 3,000 watt heaters can be controlled in pairs of two on a dual contactor panel.

• EX: You can control a 6,000 watt dual element heater with a dual contactor panel.

• Comes with 1 timer per panel

• Switches are not included: You can order an on/off or duplex switch from Infratech or you can use your own third party 120V switch.
• Purchase an on/off switch for single contactor panels.
• Purchase a duplex switch for dual contactor panels.
• You will need to purchase a faceplate of your choice, the switches above will only include the "guts".
• You will need to purchase a standard two gang box, this will house both the switch and the timer like in photo below.
• If you are recessing the panels into the wall, you will need to puhrchase the access door separately.
